Kultur-Schloss in Theuern

The lighting control system for the Kultur-Schloss is ready for your event!

The monument-protected Kultur-Schloss/Mining and Industrial Museum Theuern is being renovated and modernised in a total of three construction phases.

The second construction phase began in 2022, a two-year modernisation phase of the historic Hammerherrenschloss in the Oberpfalz region. This was finalised in October 2023.

Major interventions were necessary to bring the two event halls up to the latest standards. The entire stage was redesigned and fitted with new stage technology including an induction loop. In addition, a ventilation system with cooling was installed and the entire lighting was redesigned from scratch.

All renovation measures were realised by H+F Architekten in close coordination with the State Office for the Preservation of Historical Monuments and the corresponding funding was applied for.

A complete solution from Seebacher!

The lighting concept in its realisation is a fine example of an overall solution from Seebacher in the event sector!

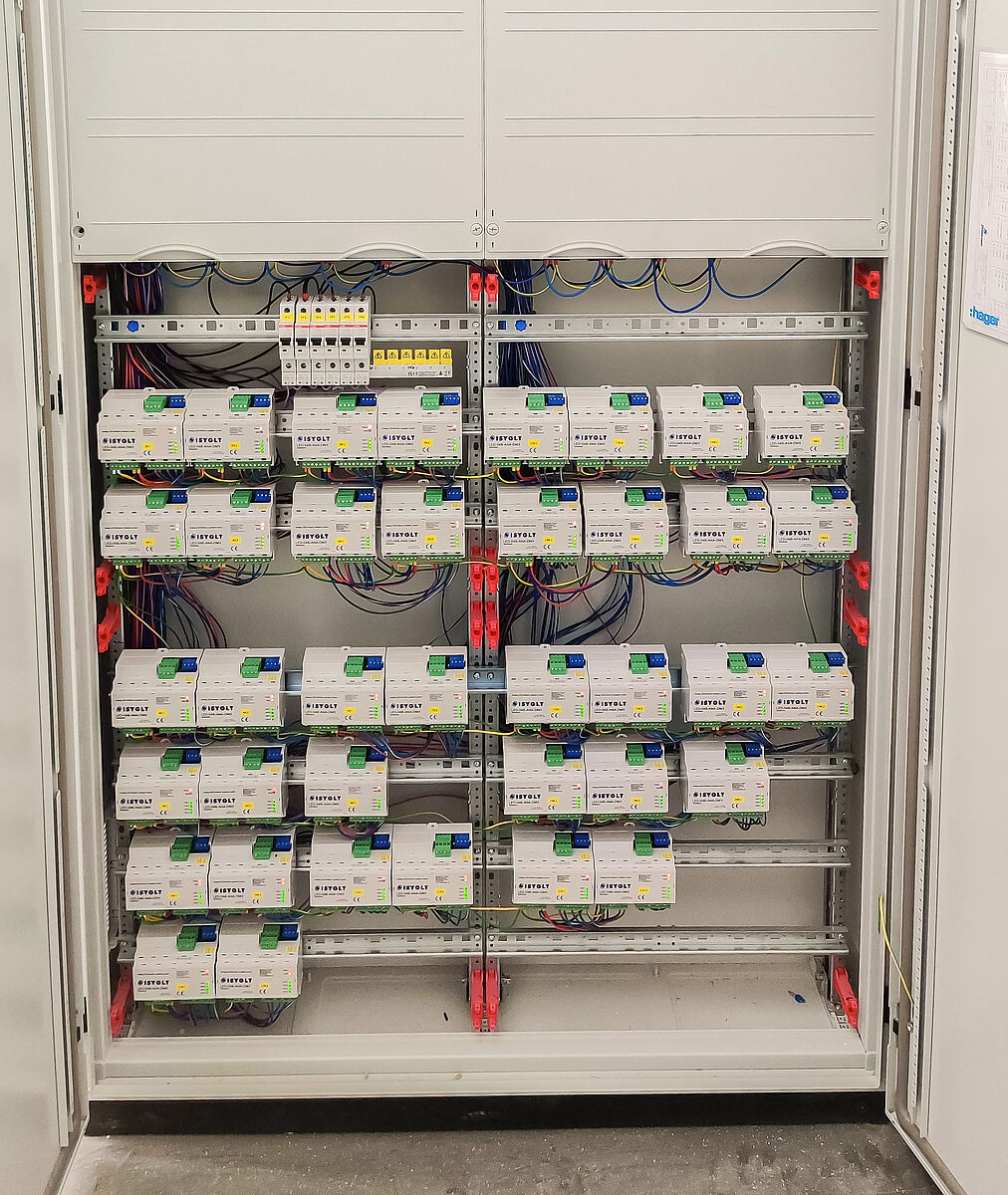

Seebacher manufactured and supplied a modern LED lighting system including the associated lighting control system. Seebacher built a total of seven control switch cabinets, which now ensure smooth operation during events and exhibitions!

Our special expertise:

Light that is both optimal for event sequences and at the same time camera-compatible and 100% flicker-free! This realisation placed high demands on the coordination of the luminaires and dimmers. The ISYGLT LED dimmer LED-04B-ANA-DMX (the best on the market) and the high-quality luminaires from Climar LIGHTING in Portugal were the perfect combination!

In future, the meetings of the district council, for example, will be able to take place without interference from the room lighting during video conferences.

Colour desired? Here it is!

The large event hall was given indirect lighting under the side benches using LED bars. There are also accent lights towards the hall ceiling and on the floor surface between the wooden beams in the form of down and up lights. Both accent lights can emit total colour moods in RGBW.

The main hall lighting extends linearly over the entire length of the room in 2 strands as luminaire bodies in 3000 Kelvin white.

In addition, stage lighting was installed in the form of spots and spotlights. The stage spotlights are controlled by the ISYGLT system. For events, separate shows are controlled from the control room with its own control desk at the end of the large hall. Thanks to the ISYGLT DMX512-16B-V2 interface module, the ISYGLT bus and event controllers can be used to control each other.

Show larger version

Show larger version

The hall lighting is managed via two Wall Touches with predefined lighting scenes at both entrances to the hall. Particular attention was paid to ease of operation here, as the hall was planned for hire events.

There are several touch control points on site for intelligent and user-friendly management of the entire system. This was achieved with the ISYGLT wall touch variants and the larger ISYnet Touch-PCs with our IPMS visualisation.

Show larger version

Small event hall

The smaller event hall has a relatively low ceiling height. An effective lighting solution close to the ceiling was required here: dimmable wall lighting in the form of spotlights as well as linear ceiling luminaires from our partner Climar Lighting from Portugal.

Major interventions were necessary to bring the two event halls up to the latest standards. Both event halls were fitted with a ventilation system with cooling, which is essential in summer, and a lift was installed to provide barrier-free access.

In addition to the large and small event halls, the Kultur-Schloss also houses a vault that can also be booked for events and exhibitions in future. 3 power tracks with special spotlights that operate specific beam angles are available here to illuminate exhibits.
