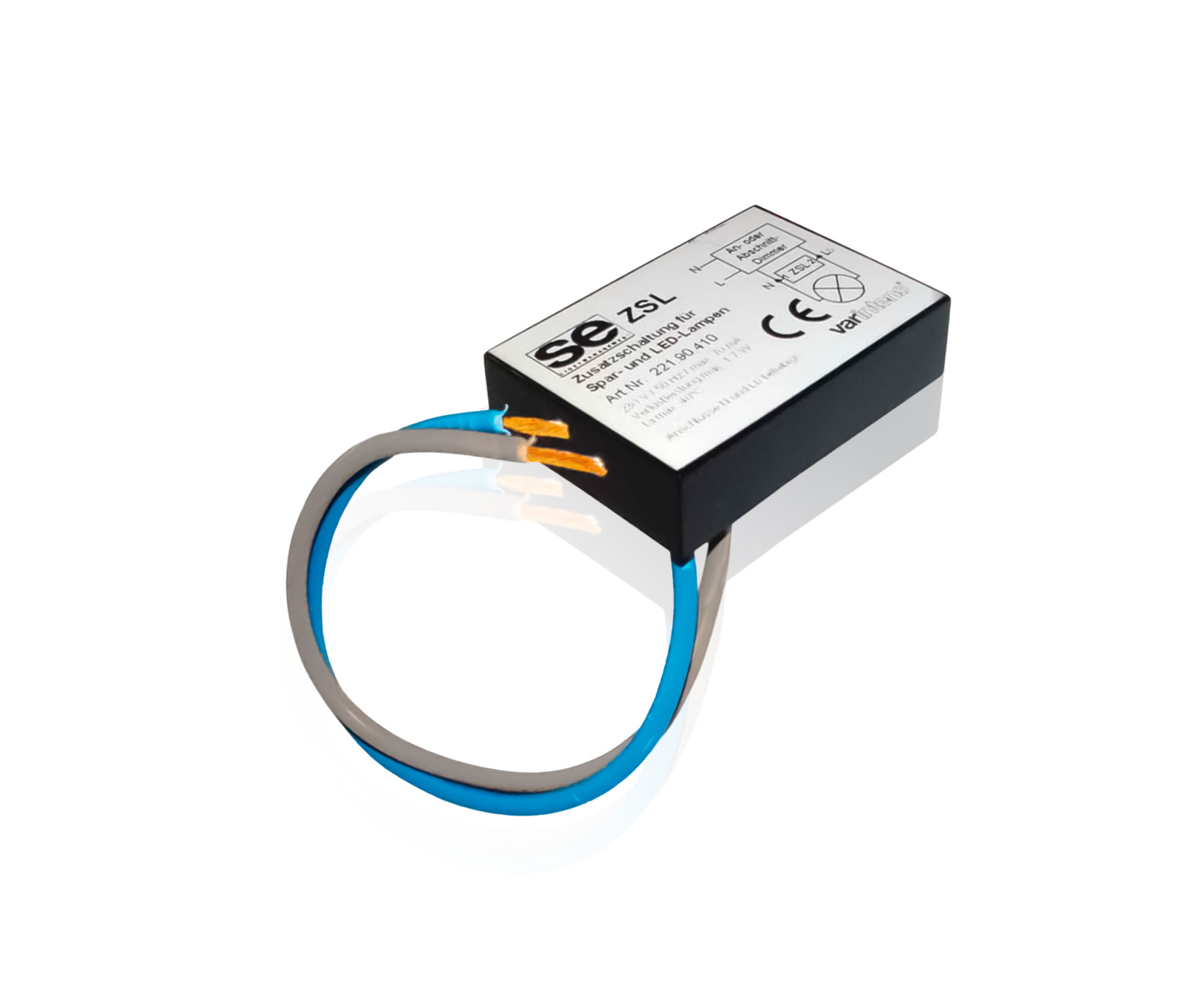

varintens Additional Circuit ZSL-UP

The Additional Circuit for economy and LED lamps serves to improve the dimming behaviour when dimming economy lamps and retrofit LED lamps.

Quick Facts

  • installation behind flush-mounted dimmer
  • no standby losses
  • easy handling
  • suitable for 230V
  • leading edge and trailing edge possible

Economy and LED lamps have a ballast built into the base, which produces the voltage suitable for the illuminant from the mains voltage. When dimming, it may happen that this ballast prevents the detection of the voltage zero crossing of the mains voltage required for the dimmer. The dimmer can therefore "fall out of step", which manifests itself in a flickering of the lamps.

The Additional Circuit of the ZSL-UP regulates this and improves the dimming behaviour.

Electrical Data

Mains voltage 230 V ±10%
Current max. 35mA
Mains frequency 50 Hz (option 60 Hz)
Power dissipation max. 1.7W
Ambient temperature 0°C to +40°C
Protection class IP20

Design, Dimensions, Weight

Design plastic housing; mounting in flush-mounted box
Dimensions HxWxD 29x41x10mm
Weight 20g

Ordering Data and Conformity

Type designation ZSL-UP
Article no. SE221.90.410
Make varintens
Conformity CE
