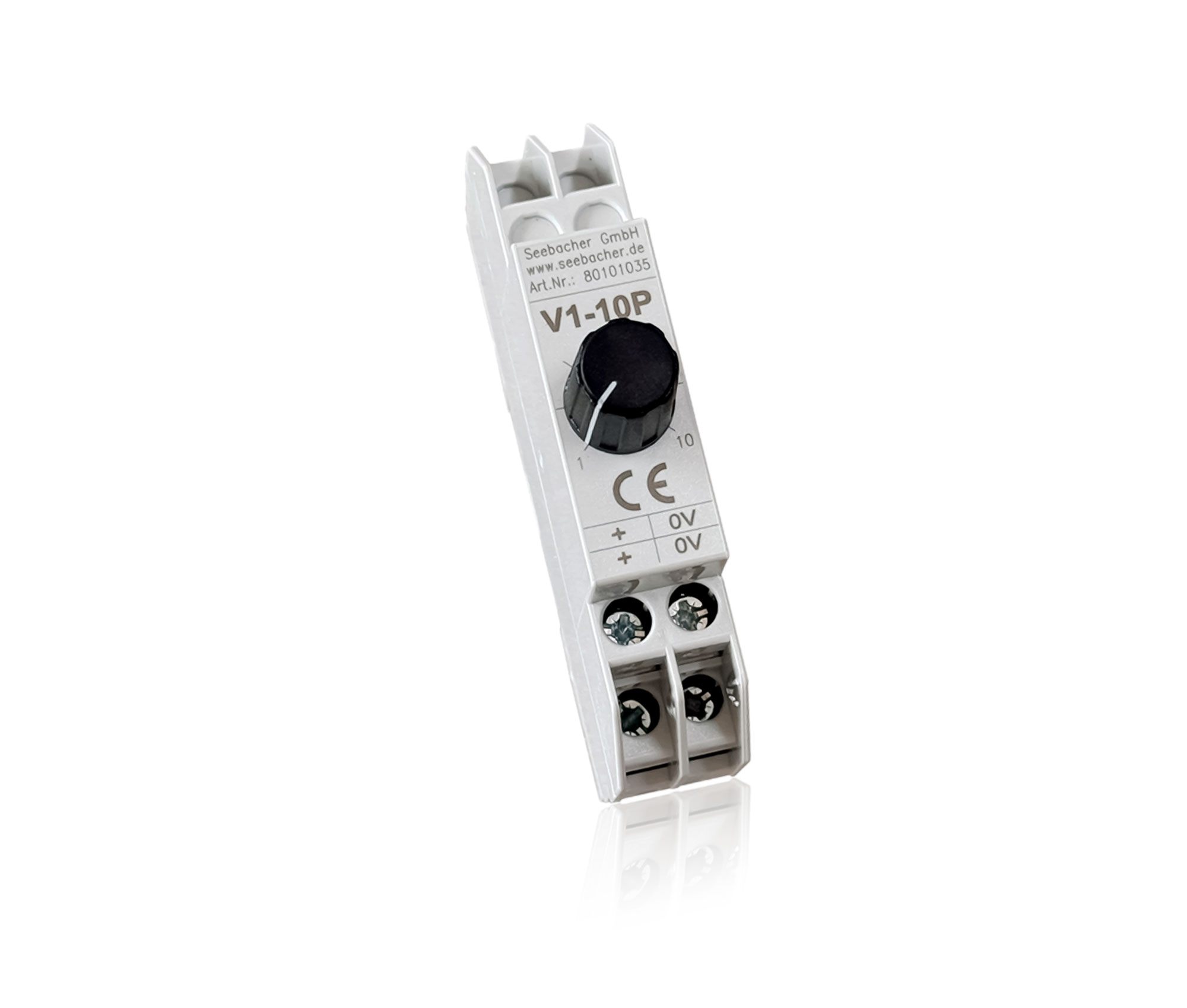

1-10V Sink Current Potentiometer V1-10P



The active control potentiometer V1-10P is used to control electronic ballasts (ECGs) with 1-10V interface.

Quick Facts

  • 1-10V control potentiometer
  • output: 1-10V (sink current)
  • up to 150mA maximum

The active 1-10V control potentiometer V1-10P is used to control electronic ballasts (ECGs) with standardized analog 1-10V interface. The V1-10P acts as a current sink of maximum 150mA.

Type designation V1-10P
Article no. 80101035
Operating voltage 10V DC
Current consumption max. 0.150A (approx. 150 ECGs)
Mounting DIN rail mounting
Connection screw terminals 2.5mm² (supply voltage)
Ambient temperature max. +50°C
Storage temperature -25°C to +70°C
Humidity max. 95% r. h. non-condensing
Protection class IP30
Design DIN rail mounting plastic housing light grey, snap-on on 35mm DIN rail 1 HP
Dimensions LxWxH 17.5x90x59mm
Weight 50g
Make ISYnet
Conformity CE

Dimensions
Screen resolution JPG

Instruction Manuals

Pin Assignment

4-pole connector below

+ Connection (+) 1-10V
+ Connection (+) 1-10V
0V Connection (-) 1-10V
0V Connection (-) 1-10V
