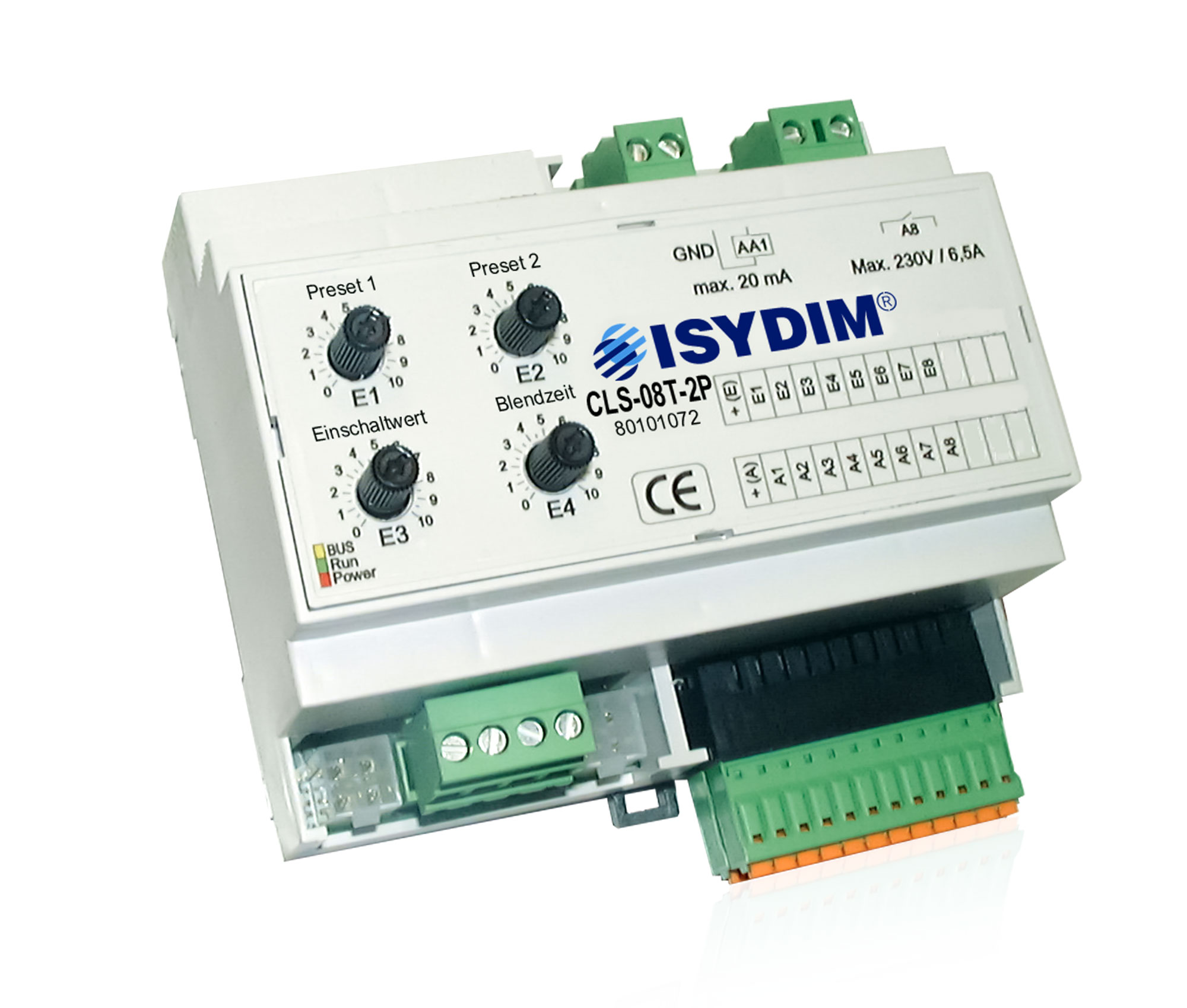

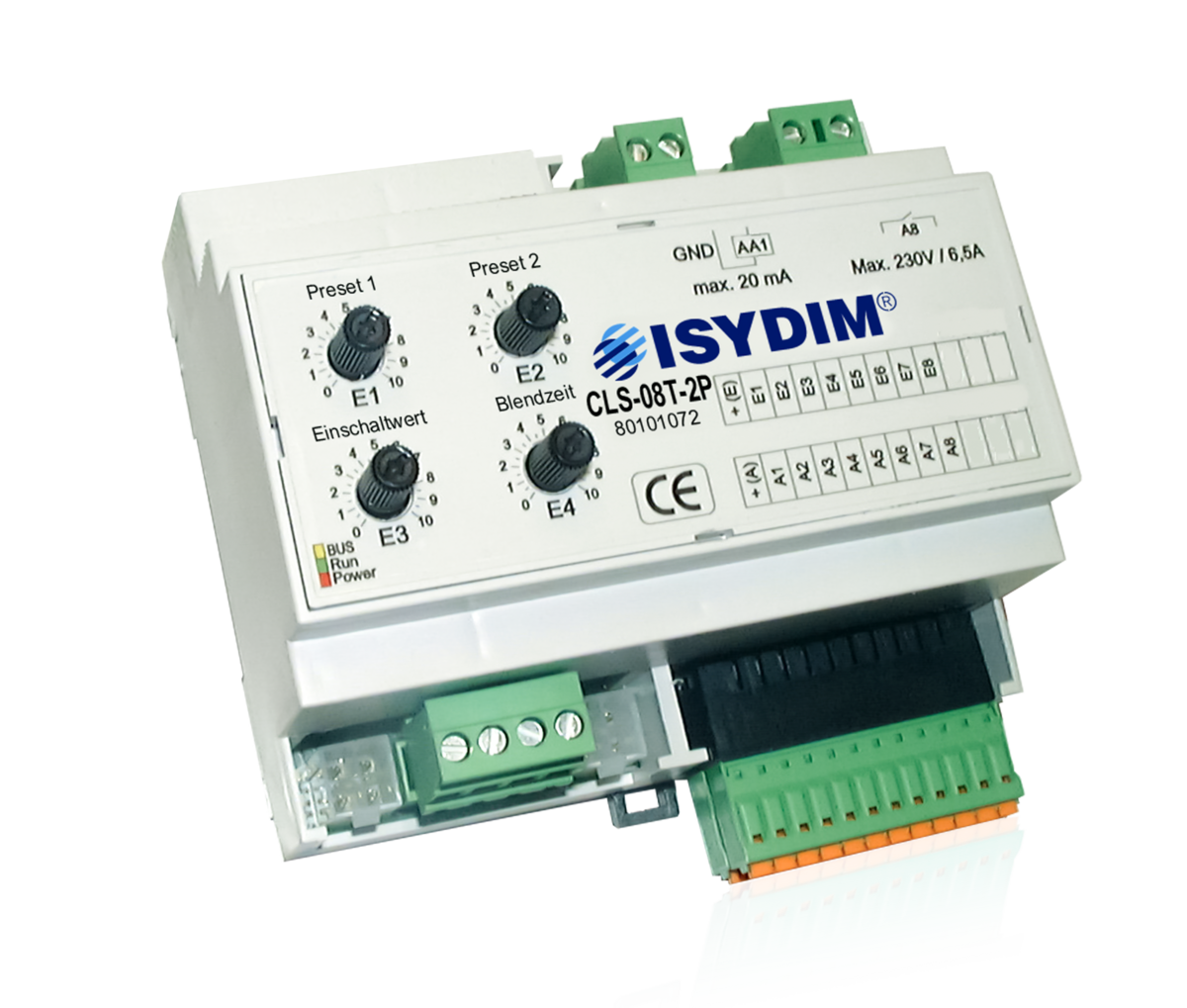

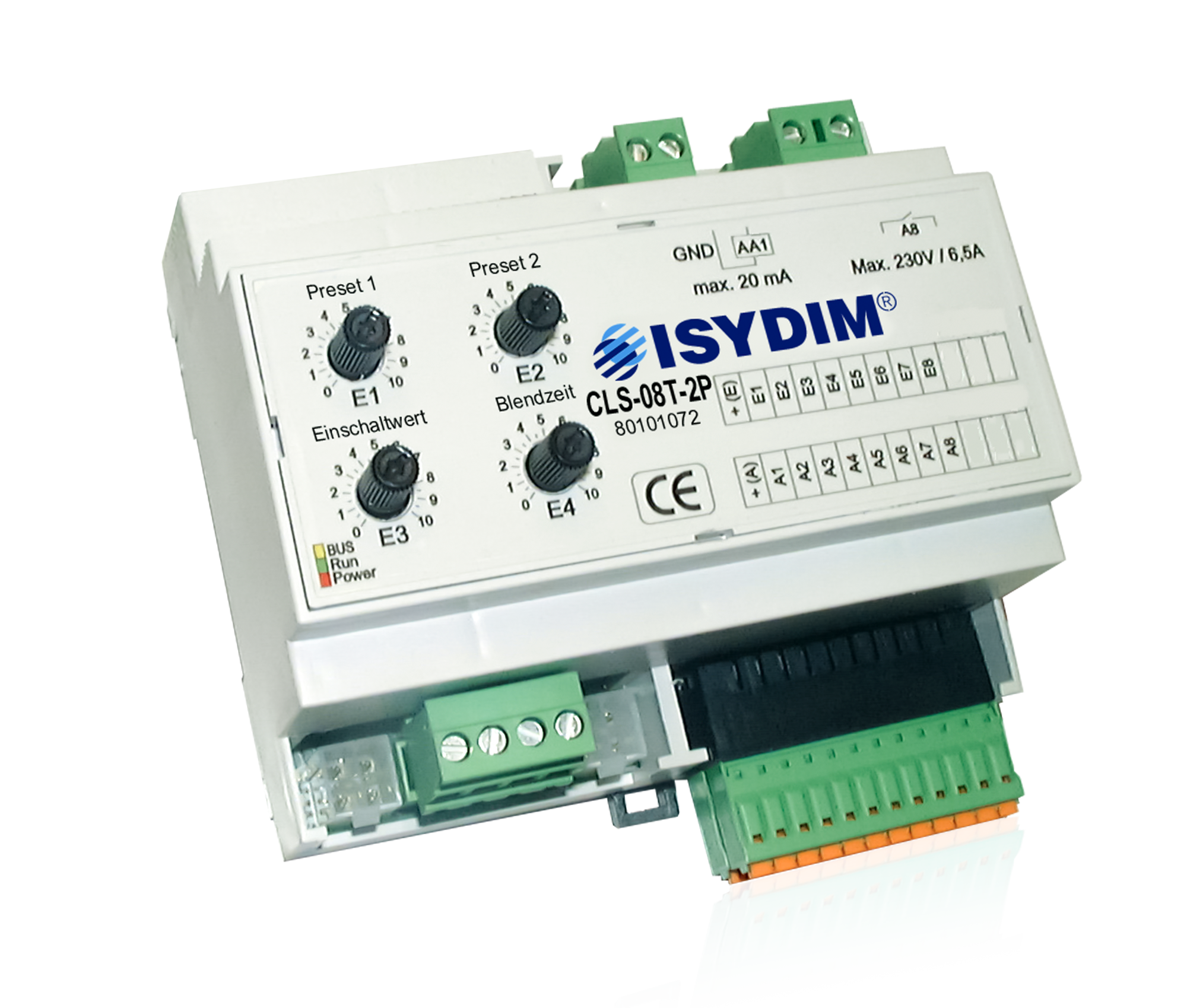

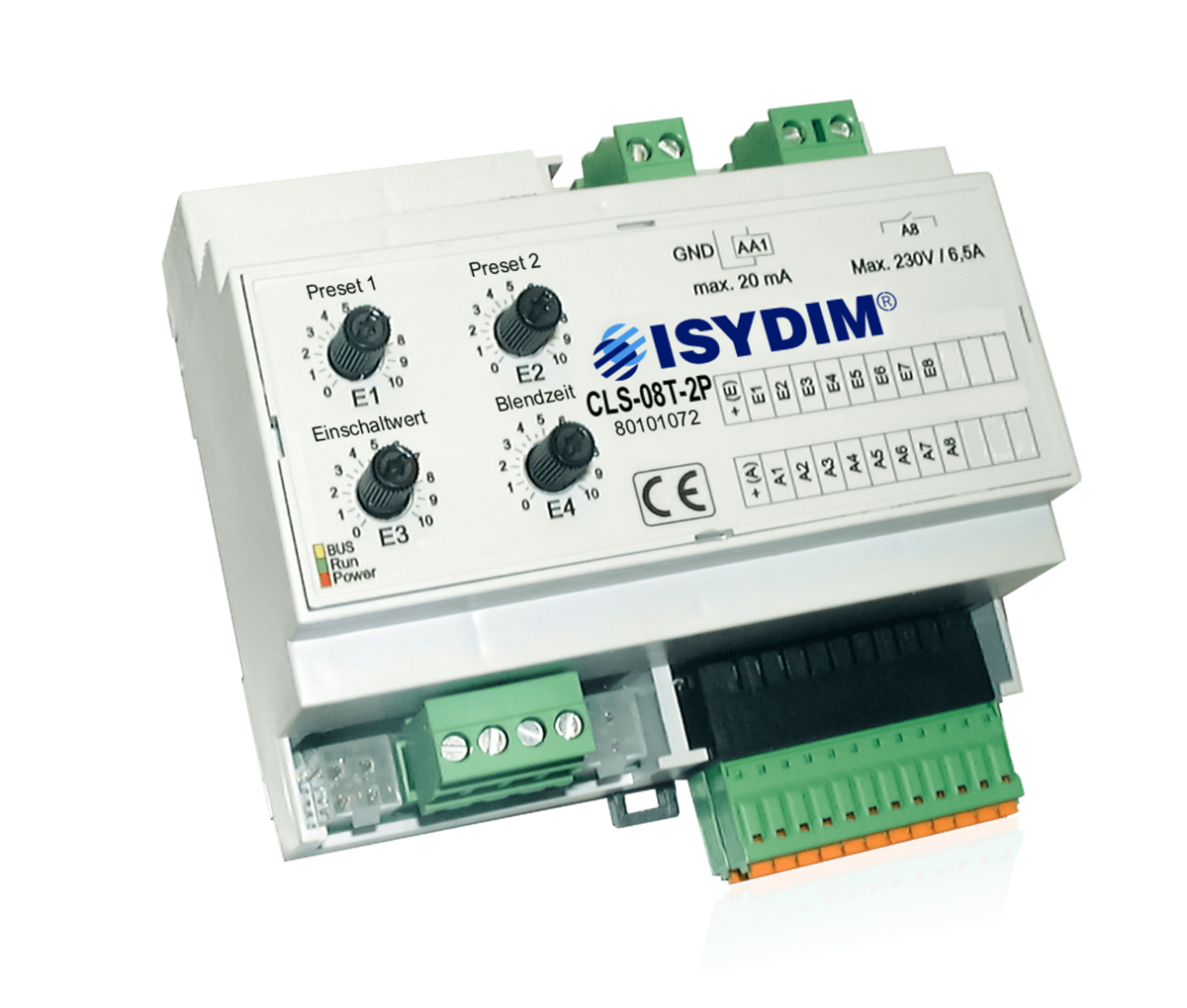

Comfort Light Control Unit CLS-08T-2P

The CLS-08T-2P Light Control Unit is a convenient solution for lighting controls with standardised 0(1)-10V interface. 2 preset dimming positions can be called up via buttons.

Quick Facts

  • 8 buttons/contacts (24V)
  • 5 feedback signals (24V) and signal-on
  • 4 rotary potentiometers
  • 1 relay output 230V
  • 1 analog output 0(1)-10V
  • on/off, brighter, darker, stop
  • call up 2 fixed dimming positions
  • central on / central off

The CLS-08T-2P Light Control Unit is a convenient solution for lighting controls with standardised 0(1)-10V interface for source and sink operation. The interface can be loaded with 20mA and is used for direct connection of dimmable fluorescent lamps with ECG 1-10V or LV halogen lamps with 1-10V transformer. A hybrid relay switching output with a load capacity of 230V, 1500VA, 6.5A is also available for the analog output. This is optimised for ECG loads by a special zero-crossing circuit and guarantees a safe mains circuit for dimming. By using additional power dimmers, a wide variety of applications and power classes can be realised. The basis of the control unit is a digital, future-oriented multiprocessor technology, which guarantees easy to operate functions and extremely safe operation.

With this control unit, the following functions are available for a dimming circuit:

  • I/O
  • Brighter, dims brighter as long as the button is pressed
  • Darker, dims darker as long as the button is pressed
  • Preset 1 - calling a fixed dimming position (DIA value)
  • Preset 2 - calling a fixed dimming position (DIA value)
  • Central on - defined switch on
  • Central off - defined switch off
  • Signal-on

Up to 8 buttons/contacts (24V) and 5 feedback signals (24V) can be connected to the control unit. 4 potentiometers are available for setting the "switch-on light value" (Einschaltwert), value "Preset 1" and "Preset 2" and the "fade time" (Blendzeit).

Functions can be called up either via a pushbutton panel, single buttons or potential-free contacts.

Thanks to its universal logic, the Lighting Control Unit can be used for different operating modes. These can also be combined with each other at any time.

Variant 1 - I/O

This variant is available for fixed value settings (e.g. exhibition lighting, basic lighting,...). When switching on (I/O button), the light value set on the potentiometer (switch-on light value) is called up and held. By pressing the I/O button again, the lighting is switched off.

Variant 2 - I/O, Brighter, Darker

When switching on (I/O button), the light value set on the potentiometer (switch-on light value) is called up and held. The "brighter" and "darker" buttons are used to change the brightness in the respective dimming direction for the duration of the button press. By pressing the I/O button again, the lighting is switched off.

Variant 3 - I/O, Brighter, Darker, Preset 1, Preset 2

As described before and additionally 2 presets (fixed values or DIA values) are available. By pressing the corresponding "preset" button the brightness value set at the potentiometer "Preset 1" or "Preset 2" is called up.

Central switching

Higher-level control interventions are possible via the central on (100%) and central off functions. Thus several groups can be switched on or off at the same time (e.g. central control panel at the gatekeeper). A 24V output is available to indicate whether the lighting is still on.

Setting fade time (dimming speed)

With the potentiometer "Blendzeit" the fade time can be adjusted within the range of 0-30 seconds. The dimming time from 0 to 100% is defined as the fade time. A typical default value here is 5 seconds. The dimming with the function buttons always takes place with the set fade time. The output of the analog value when switching on or off takes place without delay.

Electrical Data

Operating voltage 12V to 35V DC
Current consumption 100mA at 24V + current of the feedback signal outputs max. 150mA = sum max. 250mA
Inputs (buttons) 24V DC, input current per input 5mA bei 24V (only own voltage by bridge can be used!)
max. cable length: 50m
Outputs (feedback signals) 24V DC 0V switching, against internal + limited to 150mA
max. cable length: 50m
Relay output 230V 1500VA (max. 6.5A) with triac zero voltage switch
Analog output 1 analog channel 8 bit resolution 0-10V (1-10V), output current max. 20mA (sink or source)
Connection screw terminals 2.5mm² pluggable, pluggable spring type terminals 1.5mm²
Operating temperature -10°C...+50°C
Storage temperature -25°C...+70°C
Humidity 0...85% r. h. non-condensing
Protection class IP 30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP

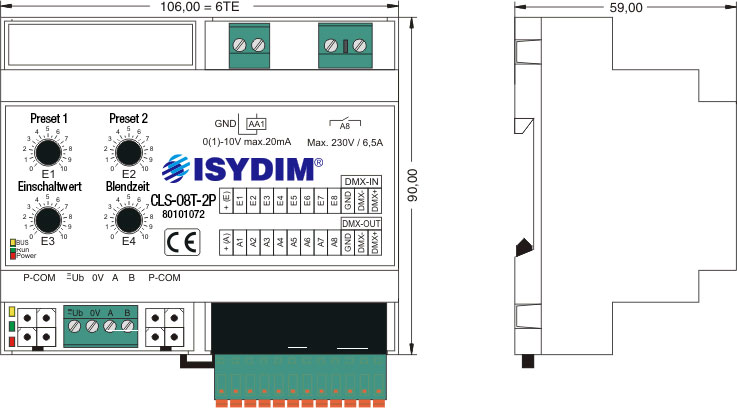

Dimensions WxHxD 106x90x59mm (6 HP)
Weight 200 g

Ordering Data and Conformity

Type designation CLS-08T-2P
Article no. 80101072
Make ISYDIM
Conformity CE

Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError
blinkingInterference-free function
greenRunblinkingSignals the processor function

Potentiometers

E1 Setting light value Preset 1
E2 Setting light value Preset 2
E3 Setting switch-on light value
E4 Setting fade time

Pin Assignment

4-pole plug below left

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (subnet RS-485)
B BUS B (subnet RS-485)

2x P-COM ports

P-COM Subnet and operating voltage

2x 2-pole plug top right

GND GND (0V) of the 0(1)-10V analog output
AA1 0(1)-10V output sink or source
C8 Hybrid relay output 230V 6.5A (coupled with feedback signal output A8)
A8 Hybrid relay output 230V 6.5A (coupled with feedback signal output A8)

12-pole plug below right front row

+(E) +24V current limited for inputs
E1 I/O
E2 Brighter
E3 Darker
E4 Preset 1
E5 Preset 2
E6 Not assigned
E7 Central on
E8 Central off

12-pole plug below right back row

+(A) +24V current limited for outputs
A1 Feedback signal on/off
A2 Not assigned
A3 Not assigned
A4 Feedback signal Preset 1
A5 Feedback signal Preset 2
A6 Not assigned
A7 Not assigned
A8 Feedback signal on
