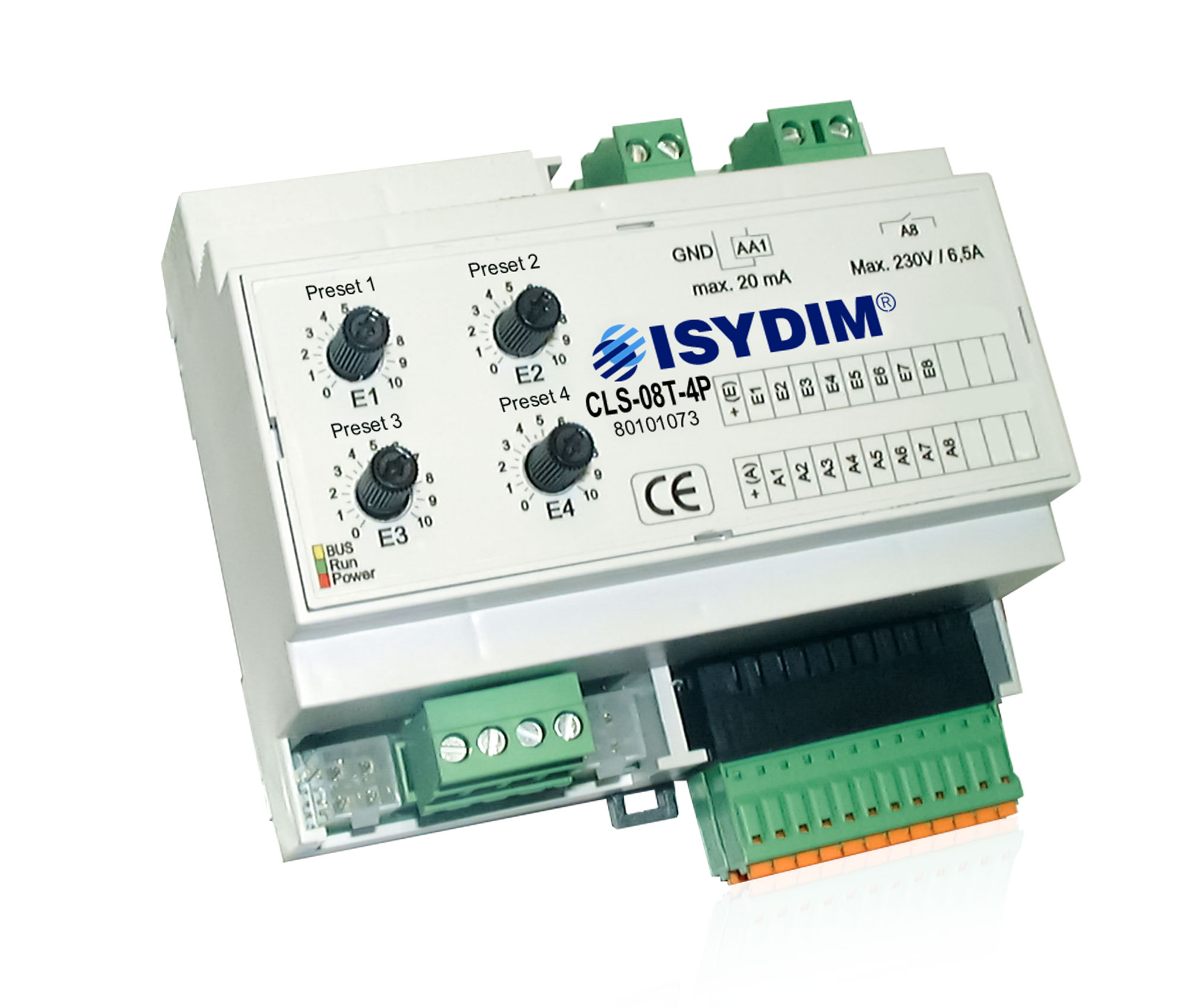

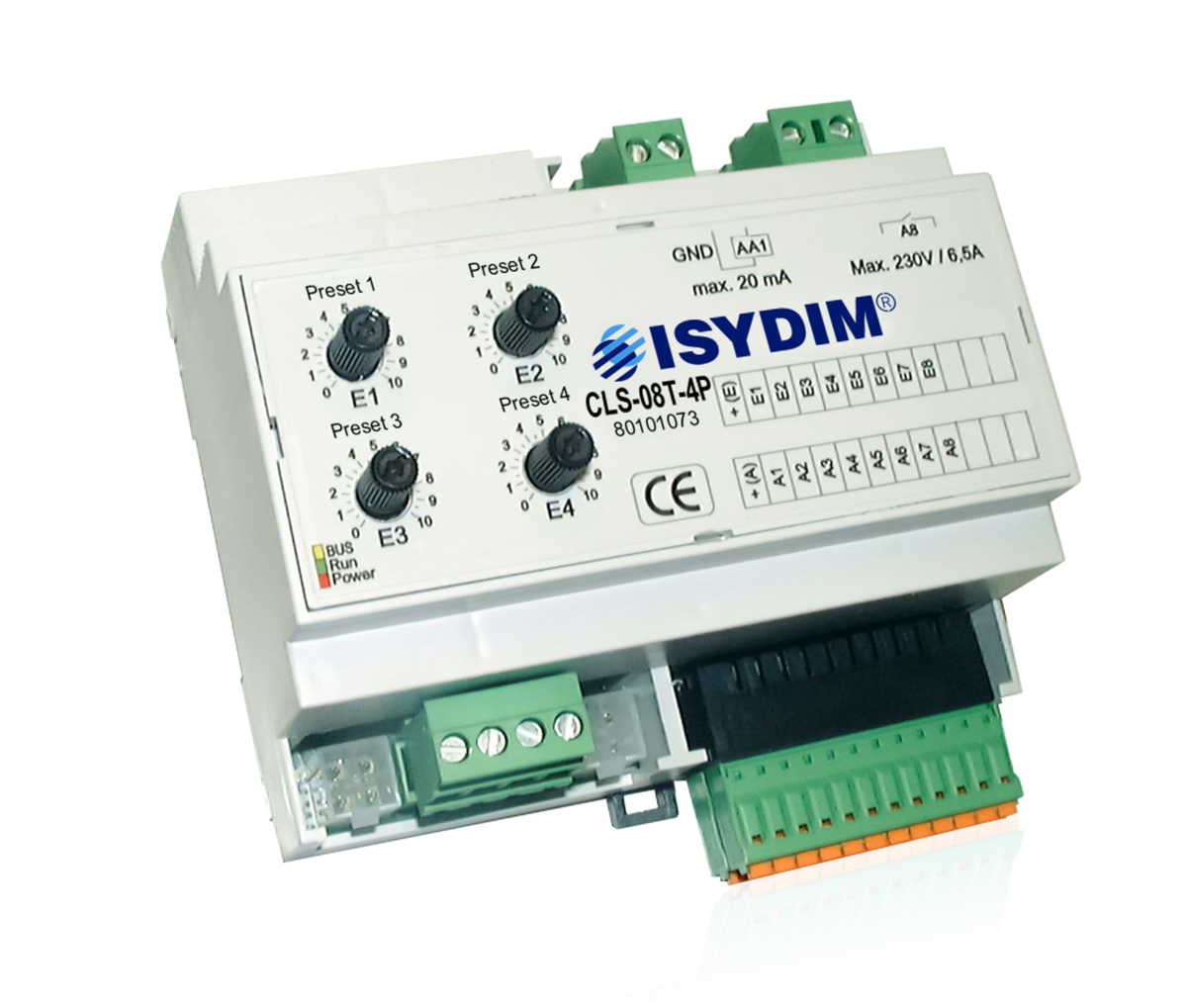

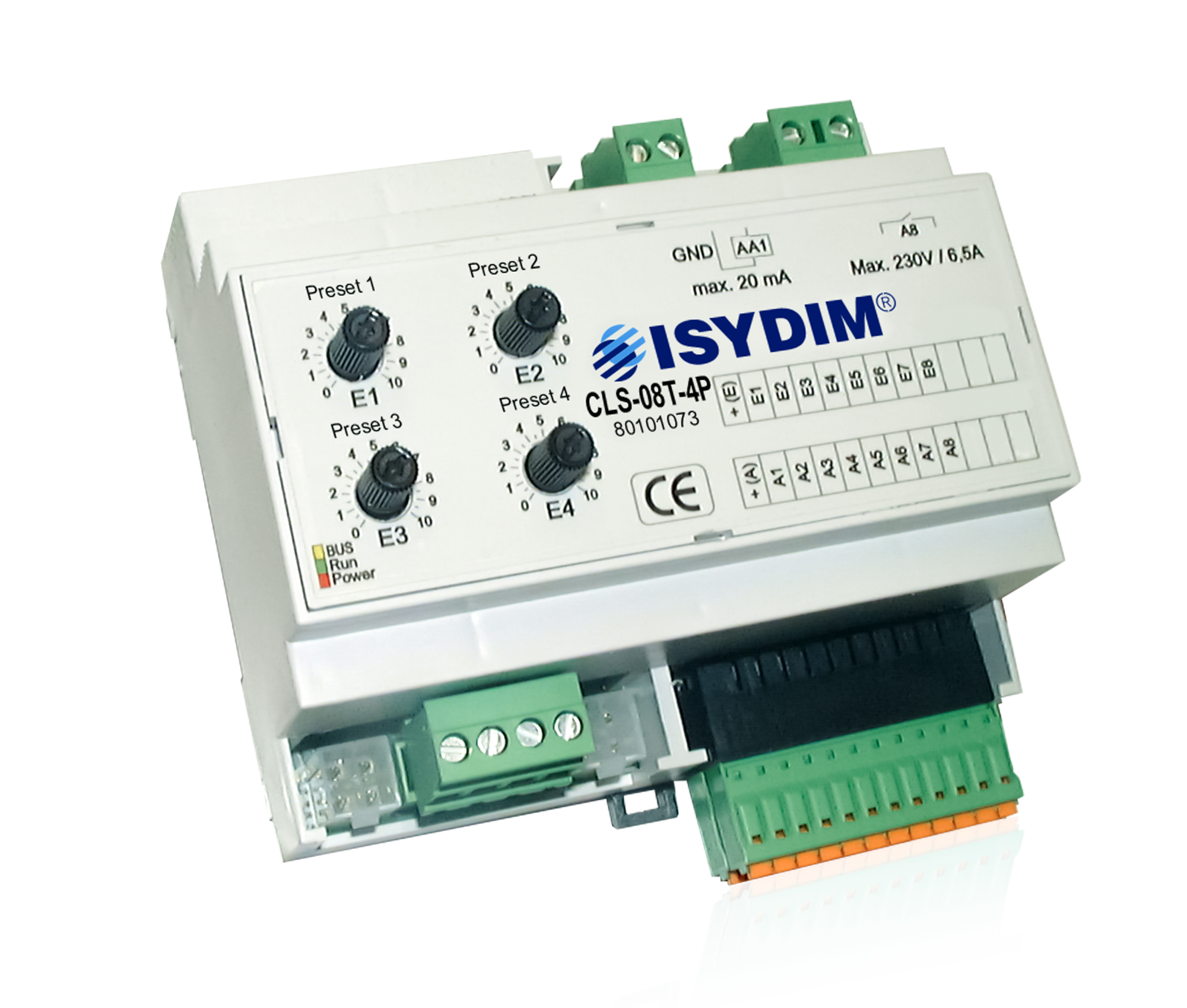

The CLS-08T-4P is a comfort solution for lighting controls with standardised 0(1)-10V interface for source and sink operation. The interface can be loaded with 20mA and is used for direct connection of dimmable fluorescent lamps with ECG 1-10V or LV halogen lamps with 1-10V transformer. A hybrid relay switching output with a load capacity of 230V, 1500VA, 6.5A is also available for the analog output. This is optimised for ECG loads by a special zero-crossing circuit and guarantees a safe mains circuit for dimming. By using additional power dimmers, a wide variety of applications and power classes can be realised. The basis of the control unit is a digital, future-oriented multiprocessor technology, which guarantees easy to operate functions and extremely safe operation.
With this control unit, the following functions are available for a dimming circuit:
- I/O
- Brighter, dims brighter as long as the button is pressed
- Darker, dims darker as long as the button is pressed
- Preset 1 - Calling a fixed dimming position (DIA value)
- Preset 2 - Calling a fixed dimming position (DIA value)
- Preset 3 - Calling a fixed dimming position (DIA value)
- Preset 4 - Calling a fixed dimming position (DIA value)
- Central off - defined switch off
- Signal-on
Up to 8 buttons/contacts (24V) and 6 feedback signals (24V) can be connected to the control unit. For setting the values "Preset 1" to "Preset 4" there are 4 potentiometers available.
Functions can be called up either via a pushbutton panel, single buttons or potential-free contacts.
Thanks to its universal logic, the Light Control Unit can be used for different operating modes. These can also be combined with each other at any time.
Variant 1 - I/O
This variant is available for fixed value settings (e.g. exhibition lighting, basic lighting,...). When switching on (I/O button), the light value set on the potentiometer (switch-on light value) is called up and held. By pressing the I/O button again, the lighting is switched off.
Variant 2 - I/O, Brighter, Darker
When switching on (I/O button), the light value set on the potentiometer (switch-on light value) is called up and held. The "brighter" and "darker" buttons are used to change the brightness in the respective dimming direction for the duration of the button press. By pressing the I/O button again, the lighting is switched off.
Variant 3 - I/O, Brighter, Darker, Preset 1, Preset 2, Preset 3, Preset 4
As described before and additionally 4 presets (fixed values or DIA values) are available. By pressing the corresponding "preset" button the brightness value set at the potentiometer "Preset 1" or "Preset 2…4" is called up.
Central switching
Through the Z-Off function, a higher-level control intervention is possible. This allows multiple groups to be switched off simultaneously (e.g., central panel at the gatekeeper). A 24V output is available as an indicator of whether the lighting is still on.
Setting the Start Value
- Turn on the lighting.
- Briefly press the Preset 4 button and adjust to the desired start value using Poti 4 (E4).
- Hold the Preset 4 button for more than 2 seconds, then additionally press the E/A button and hold both for about 5 seconds until the feedback on the E/A button blinks. The value of Poti 4 will be adopted as the start value.
Setting fade time (dimming speed)
- Turn on the lighting.
- The value of Poti 3 (E3) is scaled to 0-25 seconds (0-10).
- Hold the Preset 3 button for more than 2 seconds, then additionally press the E/A button and hold both for at least 2 seconds until RM blinks. The value of Poti 3 (E3) will be adopted as the blend time.
Electrical Data
| Operating voltage | 12V to 35V DC |
| Current consumption | 100mA at 24V + current ot the feedback signal outputs max. 150mA = sum max. 250mA |
| Inputs (buttons) |
24V DC, input current per input 5mA at 24V (only own voltage by bridge can be used!) max. cable length: 50m |
| Outputs (feedback signals) |
24V DC 0V switching, against internal + limited to 150mA max. cable length: 50m |
| Relay output | 230V 1500VA (max. 6.5A) with triac zero voltage switch |
| Analog output | 1 analog channel 8 bit resolution 0-10V (1-10V) Output current max. 20mA (sink or source) |

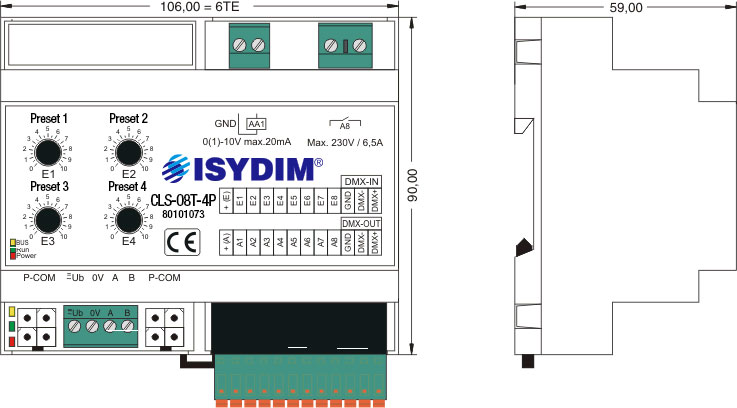

| Connection | screw terminals 2.5mm² pluggable, pluggable spring type terminals 1.5mm² |
| Operating temperature | -10°C...+50°C |
| Storage temperature | -25°C...+70°C |
| Humidity | 0...85% r. h. non-condensing |
| Protection class | IP 30 |
Additional Equipment
- Power Supply NT24V/0,75A-S (Article no. 80030007)
- Power Supply NT24V/1,0A-S (Article no. 80030010)
- Power Supply NT24V/2,5A-S (Article no. 80030025)
- Power Supply NT24V/4,0A-S (Article no. 80030040)
- Power Supply NT24V/5,0A-S (Article no. 80030050)
