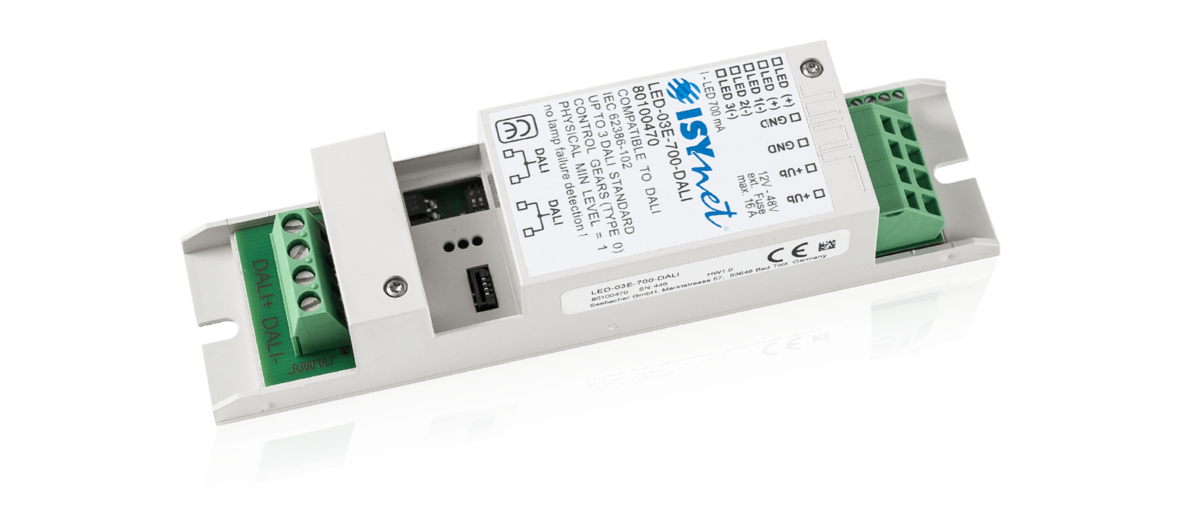

LED Dimmer LED-03E-700-DALI

LED Dimmer with 3 independent constant current outputs, CC (constant current) 700mA. Dimming 0-100% high resolution, monochrome coloured or also circadian/HCL (Human Centric Lighting warm white/cold white).

The dimmer is controlled via the DALI protocol.

Quick Facts

  • 700mA constant current
  • dimming 0-100%
  • protocol DALI

The LED Dimmer was developed to control up to 3 LED lights 700mA via the DALI protocol. This makes it possible to control the brightness of the LEDs between 0 and 100% absolutely flicker-free. With 2 DIP switches, the DALI dimmer is preset to the channel operating mode (1-, 2- or 3-channel dimmer) and accordingly only requires the defined number of DALI addresses.

Electrical Data

Operating voltage DALI BUS supply, max. 2mA (total for 1-3 CONTROL GEARS)
12V to 48V DC pulse-proof for Power-LEDs
Current consumption max. 750mA per LED circuit, fuse max. 10A
Output power 3 circuits each with 700mA
BUS control DALI compatible to DALI IEC 62386-102
3 DALI Standard CONTROL GEARS (DEVICE TYPE 0)
PHYSICAL MIN LEVEL = 1
Exceptions:
- no lamp failure detection- no SYSTEMFAILURE LEVEL "255" only "0-254"
Cable length power supply
to LED dimmer
max. 40m (observe max. permissible voltage drop for cable cross-section calculation)
Cable length LED dimmer
up to the last LED
max. 50m (observe max. permissible voltage drop for cable cross-section calculation)
Mounting housing for lamp installation
Connection screw terminals 1.5mm²
Max. ambient temperature +45°C
Storage temperature -25°C to +70°C
Humidity 0...85 % r. h. non-condensing
Protection class in not installed state IP 10

Design, Dimensions, Weight

Design plastic housing for lamp installation
Dimensions LxWxH 140x35x27mm
Weight 80g

Ordering Data and Conformity

Type designation LED-03E-700-DALI
Article no. 80100470
Make ISYnet
Conformity CE

DIP switches

DIP-1DIP-2OutputsDALI-GEAR

OFF

OFFCathode 1 (Ka.1)GEAR A
Cathode 2 (Ka.2)GEAR B
Cathode 3 (Ka.3)GEAR C

ONOFFCathode 1 (Ka.1)GEAR A
Cathode 2 (Ka.2)GEAR A
Cathode 3 (Ka.3)GEAR A

OFFONCathode 1 (Ka.1)GEAR A
Cathode 2 (Ka.2)GEAR A
Cathode 3 (Ka.3)GEAR B

ONONCathode 1 (Ka.1)GEAR A
Cathode 2 (Ka.2)GEAR B
Cathode 3 (Ka.3)GEAR B
Notice: After changing the DIP switches, the DALI addresses of the LED dimmer must be deleted again. This must then be reparameterized in the current configuration.

State Indicator (Factory Setting)

LEDStateMeaning
redOnDimmer is still in (default) delivery state
OffDimmer is no longer in (default) delivery state, i.e. parameters were changed or dimmer was addressed


Please note:
The red LED is NOT an operating voltage or function indicator of the dimmer! It is located next to the DIP switch.


Parameterisation

  • Dimming curves
    The following dimming curves can be parameterised at the factory:

Pin Assignment

Terminals LED side

+Ub Voltage input + for LED power supply
+Ub Voltage input + for LED power supply
GND Voltage input - for LED power supply
GND Voltage input - for LED power supply
LED (+) Common anode (+) of the Power-LED
LED (+) Common anode (+) of the Power-LED
LED 1 (-) Cathode (-) for Power-LED channel 1
LED 2 (-) Cathode (-) for Power-LED channel 2
LED 3 (-) Cathode (-) for Power-LED channel 3

Terminals BUS side

DALIinternally
connected
DALI BUS connection 1
DALIDALI BUS connection 1
DALIinternally
connected
DALI BUS connection 2
DALIDALI BUS connection 2
